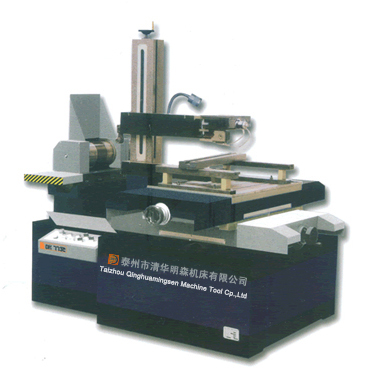

DK7725-50系列线切割数控机床
| 技术参数： Technology Parameter | | |
|
型号
type |
工作台面尺寸
worktable |
工作台行程
table travel |
最大切割厚度
max.thickness |
加工锥度
machined taper |
最大承载重量
max.carrying capacity |
主机外型尺寸
overall dimensions |
|
| DK7725 |
400*579mm |
250*320mm |
300mm |
0-±3° |
300kg |
1240*900*1600mm |
| DK7732 |
680*440mm |
320*400mm |
400-500mm |
6°/80mm |
400kg |
1430*900*1600mm |
| DK7735 |
740*470mm |
350*450mm |
400-500mm |
6°/80mm |
450kg |
1460*950*1600mm |
| DK7740 |
760*540mm |
400*500mm |
400-500mm |
6°/80mm |
600kg |
1560*1100*1600mm |
| DK7745 |
920*540mm |
450*630mm |
400-500mm |
6°/80mm |
750kg |
1560*1200*1700mm |
| DK7750 |
1000*640mm |
500*630mm |
500mm |
6°/80mm |
750kg |
1680*1250*1700mm |
| DK7750F |
1147*655mm |
500*800mm |
600-800mm |
6°/80mm |
800kg |
1680*1390*1700mm | | |
